TXA111

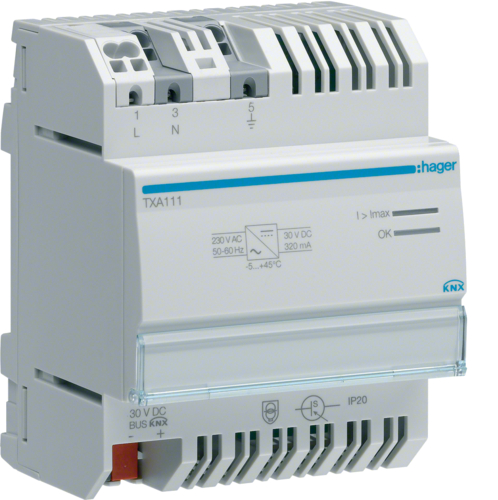

TXA111 Power supply 30V DC 320 mA

TXA111
TXA111 Power supply 30V DC 320 mA
QUICKCONNECT-LOGO__APP-SYMBOL
IP20__PROTECTION-SYMBOL

Power supply 30V DC 320 mA

Cat. Ref.:TXA111
pc.
EAN No.:

3250616049451

Pack Qty.:1 pc.
ex. GST*:554.48 $ / pc.
inc. GST*:609.93 $ / pc.
Price Group:28700
Technical Characteristics
Bus system:EIB
Fixing mode:Din-Rail
Bus lines:max. 1
  • one output 30 V DC, 320 mA incl. choke
Frequency:50/60 Hz
Output voltage:28 … 32 V
Output voltage:30V DC
Filtered output voltage:30V +/- 2V
Ouput intensity:320 mA
Output current:max. 320 mA
  • with electronic short-circuit and overload protection
Total power loss under IN:15 W
RAL colour:RAL 7035 - Light grey
Colour:stone grey
Depth of installed product:64 mm
Height of installed product:90 mm
Length:64 mm
Width of installed product:72 mm
Width of rail mounted device (RMD):4 modules
  • with green LED for display of power supply
  • with red LED for display of short-circuit and overload protection per output
Conductor cross-section (flexible):0,75 … 2,5 mm²
Conductor cross-section (rigid):0,75 … 2,5 mm²
Connection cross-sect. rigid cable:0,75 / 2.5mm²
Connection cross-sect. flexible conductor:0,75 / 2,5mm²
Type of connection:quick connect
  • protected earth conductor must be connected
  • with QuickConnect plug-in terminals
Power failure bypass:yes
  • with labelling field
Protection index IP:IP20
Operating temperature:-5 … 45 °C
Storage temperature:-20 to 70 °C
  • TXA111
    TXA111 Power supply 30V DC 320 mA
    TXA111
  • TXA111
    QUICKCONNECT-LOGO__APP-SYMBOL
  • TXA111
    IP20__PROTECTION-SYMBOL
  • TXA111 Power supply 30V DC 320 mA
  • QUICKCONNECT-LOGO__APP-SYMBOL
  • IP20__PROTECTION-SYMBOL
